TBTBBR-1
TBTSCIETECH
| Availability: | |
|---|---|

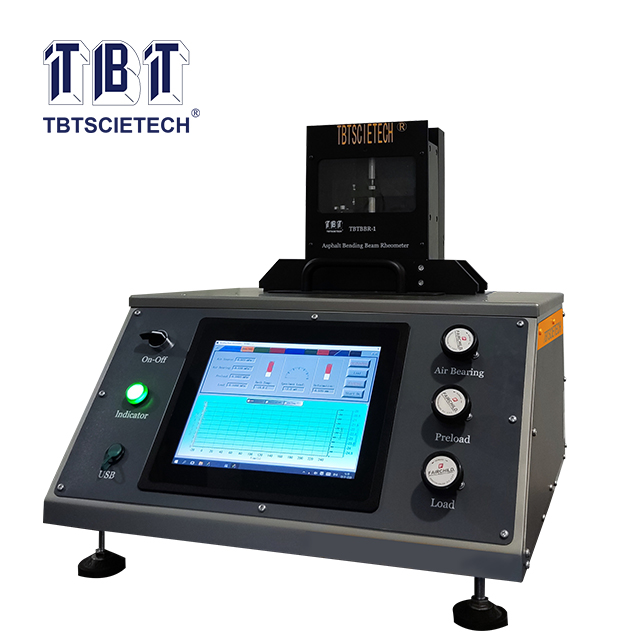

TBTBBR-1 Bending Beam Rheometer is designed according to AASHTO T313, ASTM D6648 and EN 14771 to perform flexural creep stiffness of asphalt binder at the low-temperature condition.

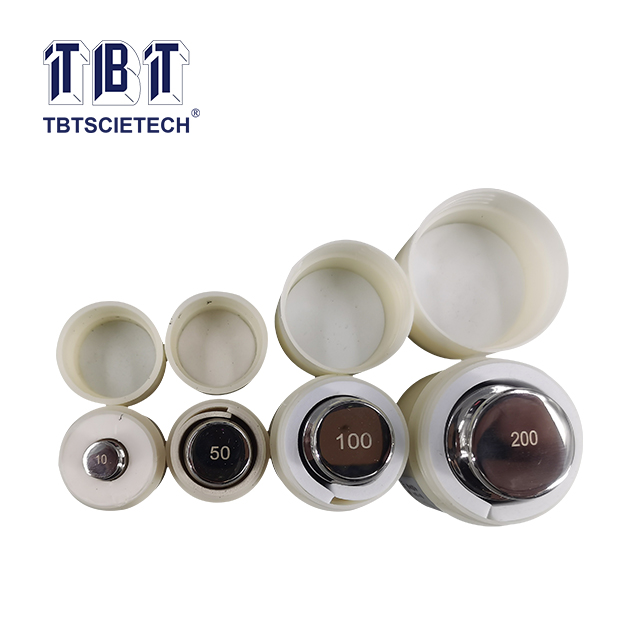

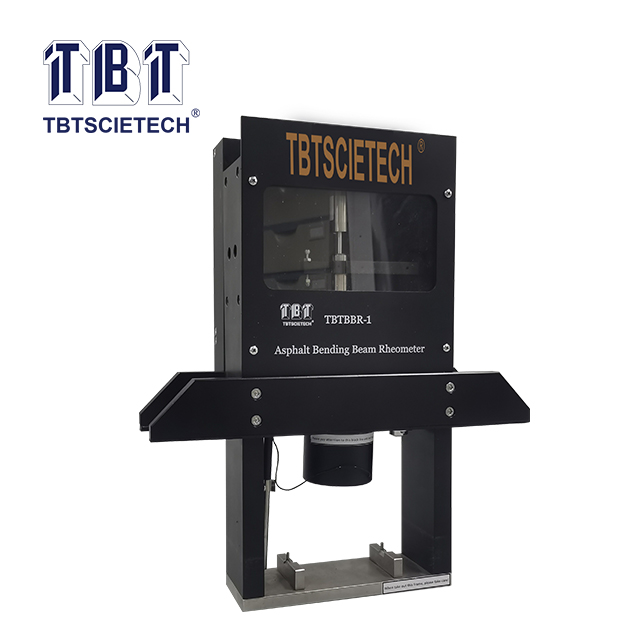

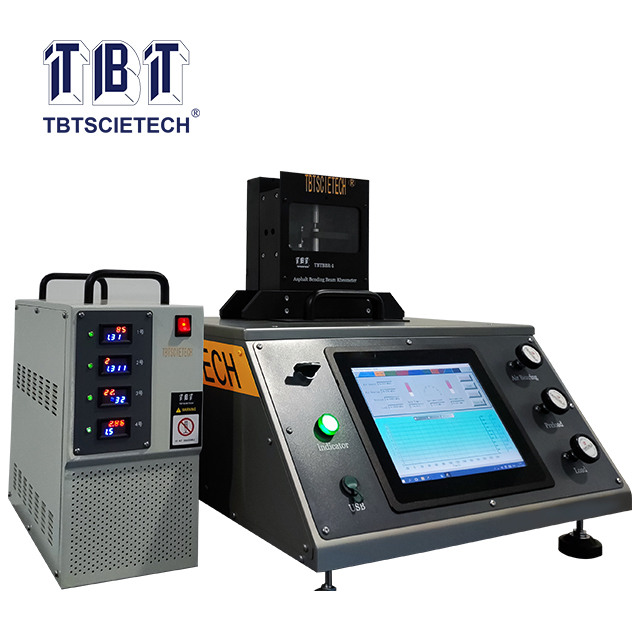

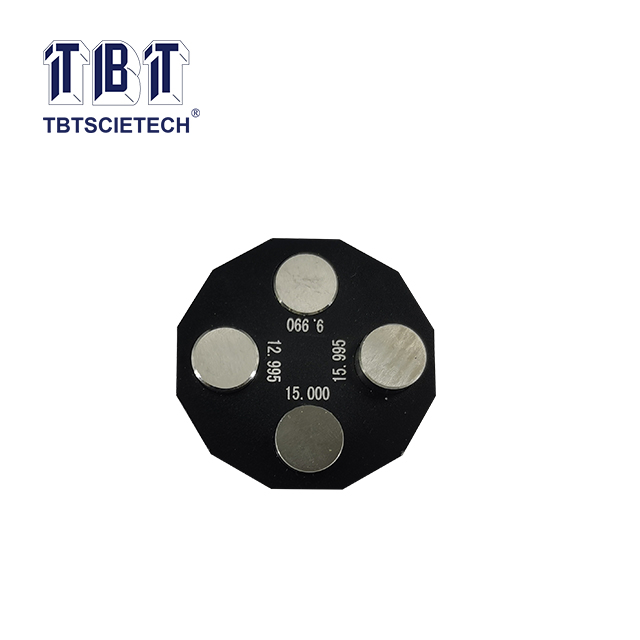

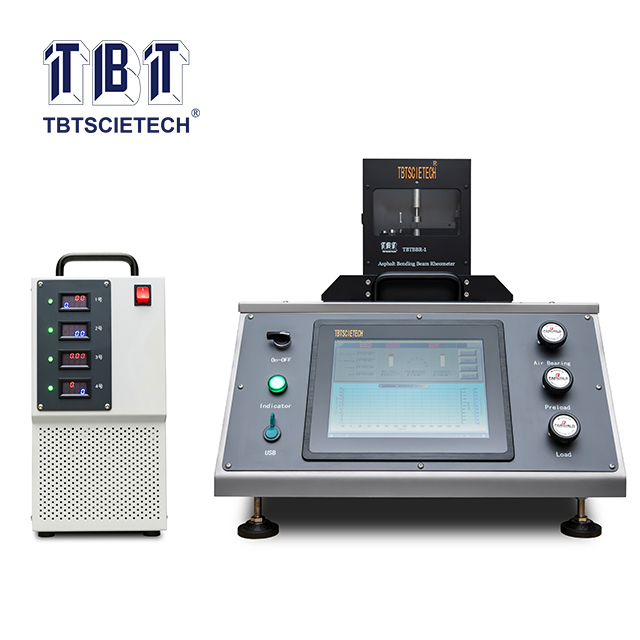

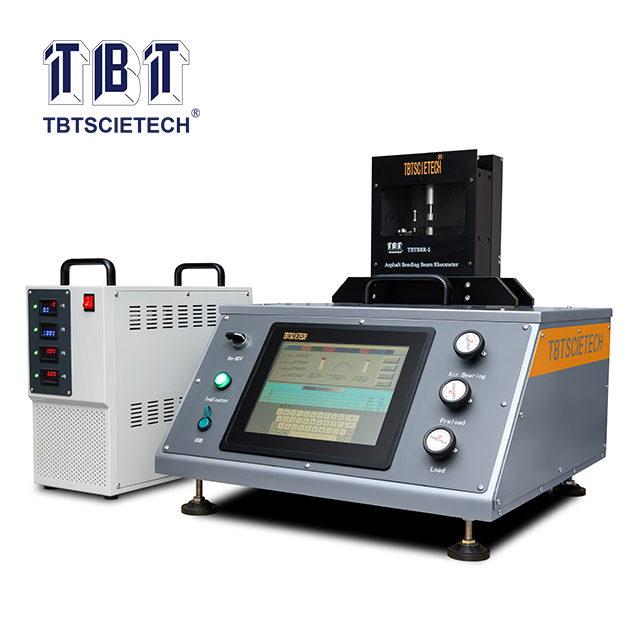

Each TBTBBR-1 consists of load frame, built-in touch screen industrial computer, fluid bath, chiller, calibration kit, air compressor and power box.
TBTBBR-1 Bending Beam Rheometer is designed according to AASHTO T313, ASTM D6648 and EN 14771 to perform flexural creep stiffness of asphalt binder at the low-temperature condition.
Each TBTBBR-1 consists of load frame, built-in touch screen industrial computer, fluid bath, chiller, calibration kit, air compressor and power box.

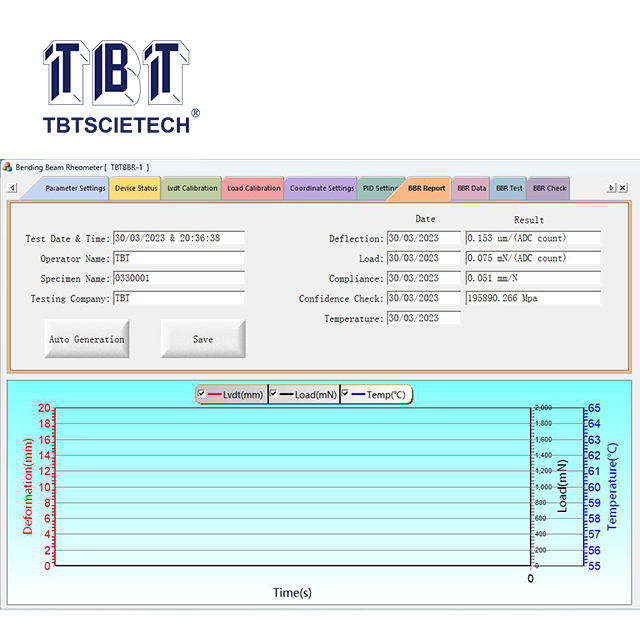

1. Industrial computer display curve of deformation, pressure and temperature in real time;
2. LVDT sensor meet standard measurement requirement;
3. Dual mode of Peltier and chiller for fast cooling from room temperature to -18℃ in 40 minutes;
4. Fluid bath temperature fluctuation within ±0.1℃ at set temperature;
5. Smoothly switch contact load(35±10mN) and test load(980±10/50mN);
6. The chiller connect to the main main host by long hose to prevent vibration;
7. Adjustable speed magnetic stirring rotor make the fluid bath temperature accurate and uniform;
8. Thin beam modulus in range of 20GPA±10% that meet standard required Daily Overall System Check;
9. Durable stainless steel frame has good corrosion resistance and easy to clean;
10. Time point for calculating result can be set by software;
11. Automatic calculate test result and generate report;
12. Two-stage high-precision air filter prevents air impurities from affecting the test accuracy;
13. USB port support data export and connect with mouse & keyboard;
14. With Ethernet port, can connect to Internet;
15. English and Russian language operation software, other language can be customized.
1. Industrial computer display curve of deformation, pressure and temperature in real time;
2. LVDT sensor meet standard measurement requirement;
3. Dual mode of Peltier and chiller for fast cooling from room temperature to -18℃ in 40 minutes;
4. Fluid bath temperature fluctuation within ±0.1℃ at set temperature;
5. Smoothly switch contact load(35±10mN) and test load(980±10/50mN);
6. The chiller connect to the main main host by long hose to prevent vibration;
7. Adjustable speed magnetic stirring rotor make the fluid bath temperature accurate and uniform;
8. Thin beam modulus in range of 20GPA±10% that meet standard required Daily Overall System Check;
9. Durable stainless steel frame has good corrosion resistance and easy to clean;
10. Time point for calculating result can be set by software;
11. Automatic calculate test result and generate report;
12. Two-stage high-precision air filter prevents air impurities from affecting the test accuracy;
13. USB port support data export and connect with mouse & keyboard;
14. With Ethernet port, can connect to Internet;
15. English and Russian language operation software, other language can be customized.
| Sensors | Displacement sensor range: | 0~10mm |
Displacement sensor resolution: | 5μm | |
| Pressure sensor range: | 0~4900mN | |
| Pressure sensor resolution: | 2mN | |
| Temperature sensor range: | -50℃~room temperature | |
Temperature sensor accuracy: | ±0.1℃ | |
| Liquid bath | Liquid bath temperature range: | -40℃~room temperature |
| Temperature control accuracy | ±0.1℃ | |
| Volume: | 5L | |
Rotating speed | 25r/min | |
| Others | Specimen size： | 127mmx12.7mmx6.35mm |
Top radius of specimen rack: | 3mm±0.3mm | |
| Loading axis radius: | 6.3mm±1.3mm Spherical contact point | |
| Number of specimen | 1Pc | |
| Creep stiffness range： | 20MPa~1000MPa | |
| Data interface： | USB | |
| Power | Host | 220VAC 1kW |
| Power Box | 220VAC 1.8kW | |
| Refrigerator | 220VAC 3kW | |
| Host dimension: | Around 610mmx610mmx620mm | |
| Host weight | Around 80KG |
| Sensors | Displacement sensor range: | 0~10mm |
Displacement sensor resolution: | 5μm | |
| Pressure sensor range: | 0~4900mN | |
| Pressure sensor resolution: | 2mN | |
| Temperature sensor range: | -50℃~room temperature | |
Temperature sensor accuracy: | ±0.1℃ | |
| Liquid bath | Liquid bath temperature range: | -40℃~room temperature |
| Temperature control accuracy | ±0.1℃ | |
| Volume: | 5L | |
Rotating speed | 25r/min | |
| Others | Specimen size： | 127mmx12.7mmx6.35mm |
Top radius of specimen rack: | 3mm±0.3mm | |
| Loading axis radius: | 6.3mm±1.3mm Spherical contact point | |
| Number of specimen | 1Pc | |
| Creep stiffness range： | 20MPa~1000MPa | |
| Data interface： | USB | |
| Power | Host | 220VAC 1kW |
| Power Box | 220VAC 1.8kW | |
| Refrigerator | 220VAC 3kW | |
| Host dimension: | Around 610mmx610mmx620mm | |
| Host weight | Around 80KG |
